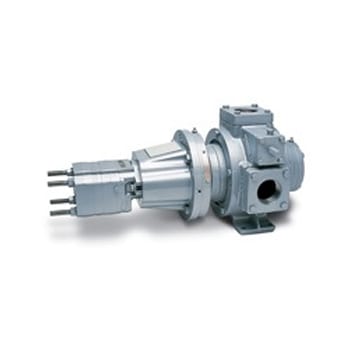

Hydraulic Option For Sliding Vane Pumps

When an electric motor drive is not the preferred option, there are alignment issues, or space is limited, a hydraulic drive is the solution. This option allows the user to mount a hydraulic motor directly to the pump forming a precise compact alignment. This option is available with CD, PT and PZ model pumps.

Flow rates up to 400 gpm (1,514 lpm)
Working pressures up to 400 psi (27.6)
Differential pressures up to 125 psi (8.6 bar)
Temperature range: -25 to 225 °F (-32 to 107 °C)
Viscosity up to 20,000 SSU (4,250 cSt)

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Ideal for applications with limited space
Eliminates alignment issues
Forms a compact alignment
Available with the PT- , PZ- and Z models only

Corken Pumps & Compressors

Whether you are in the energy, gas, transport, or process industry, Corken has a pump that will meet all your industrial pumping requirements. Established in 1924, Corken is an industry-leading manufacturer committed to offering innovative and unparalleled pumping and compression manufacturing solutions across various industries. Ali Yaqoob Trading Co. LLC is an authorized distributor of Corken in the Middle East, offering an exclusive line of Corken pumps, gas compressors, bypass valves, and accessories at highly compelling prices. Applications include autogas filling stations, bulk plant pumps, tanker unloading, fuel oil delivery, vapor recovery, liquefied gas transfer and many more. Corken has built a reputation of safety and efficiency in its entire product line for nearly a century.Our high capacity pumps feature a rugged design that is reliable, explosion-proof, and suitable to pump products even in the harshest conditions. These pumps are available in cast iron are comprised of three different technologies; regenerative turbine, positive displacement sliding vane and multi-stage side channel. Whether you seek customized solutions or want a go-to provider of fluid handling equipment, feel free to contact our team of experts.

Available with foot mount designs (CP-, CD-, PT-, PZ-, and Z-model pumps). The hydraulic versions are designated by CPH, CDH, PTH, and PZH.

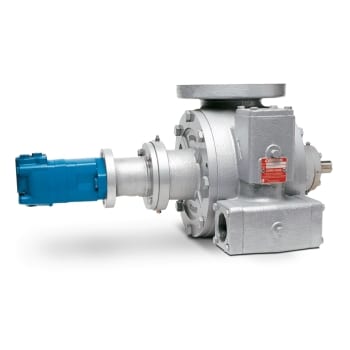

Compatible with the Z-model truck mount designs (ZH200, ZH3200 & ZH4200)
Six vanes/blades design with vane drivers
Mechanically sealed pump with a wide variety of sealing options
Depending on the model, available with NPT or ANSI flanges

Pump casing and heads: Gray iron or ductile iron.
Cam and side plates: Gray iron
Rotor and flanges: Ductile iron
Seal seat: Gray iron, stainless steel or Ni-resist
O-rings: Buna-N, PTFE, Viton®, Neoprene®. Registered trademarks of DuPont.
Blades: Advanced polymers

Eliminates the need for an electric motor
Self-adjusting sliding vanes maximizes performance
Cam and side plates can be replaced. Side plates are reversible
Maintenance is simple and cost effective: By simply removing the pump head, you can easily replace the internals without disturbing the piping
Can handle small amounts of vapor
Excellent suction lift is great for clearing suction and discharge lines
