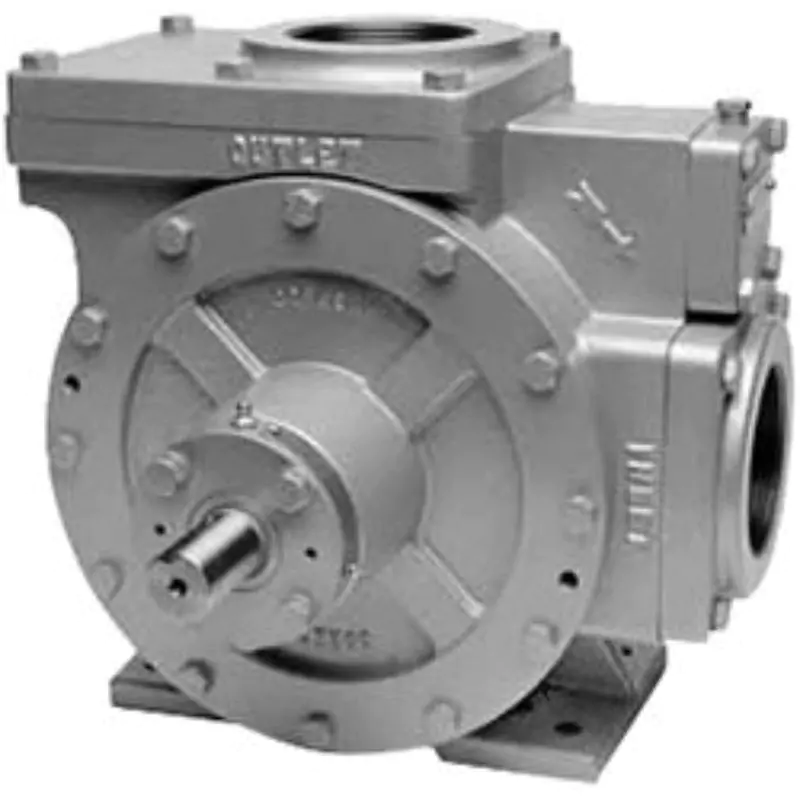

Corken Z3500 Z Sliding Vane Pump

The six blade Z-Series Coro-Vane pumps have blade drivers and a revolutionary needle roller thrust bearing with a 4,000 lb. rating. The pump is shielded by the needle roller thrust bearings from the drive system's dynamic impact loads. Truck applications reduce the likelihood of premature failures brought on by axial thrust loads. They are designed with O-rings throughout and have a working pressure rating of 400 psi (28.6 bar). The non-adjustable internal relief valve is pre-set at the factory and does not need modifications in the field because LPG (propane & butane) and agricultural ammonia applications make up the majority of the applications for Z-model sliding vane pumps. For other liquefied gases with high vapour pressures, such as natural gas liquids (NGLs), refrigerants, CO2, and many more, Z-Series pumps are an excellent choice.

Design with six blades and blade drivers.
New silicon carbide seal seat on a mechanical seal.
whole O-ring construction.
Internal relief valve is not changeable and is pre-set at the factory.
Developed for light liquids such as ammonia, propane, butane, and butane

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Operating Specifications
Construction
Materials

Performance is maximised by sliding blades and blade drivers that adjust themselves.
Sideplates that can be reversed for double the life of the replaceable cam and sideplates
Full access to the internals is provided by removing the pump head without interfering with the pipework.
Able to handle vapour in small concentrations.
To clear suction and discharge lines, use the excellent suction lift.
Internal relief valve is not changeable and is pre-set at the factory.

Flow Rate: up to 385 gpm (1,457 l/min)
Working Pressure: up to 400 psi (27.6 bar)
Differential Pressure: up to 125 psi (8.6 bar)
Temperature Range: -25 to 225 F (-32 to 107 C)
Viscosity: up to 20,000 SSU (4,250 cSt)

Designed for high pressure applications, with a 400 psi (27.6 bar) maximum working pressure
Both foot and truck mounted models are available
O-ring architecture Design with six vanes or blades and vane drivers
Silicon carbide seal seat and mechanical seal design
Available with NPT or Class 300 RF flanges, depending on the type.
Approved for use with agricultural ammonia and LPG by Underwriters' Laboratories (UL)
Available hydraulic drive option
