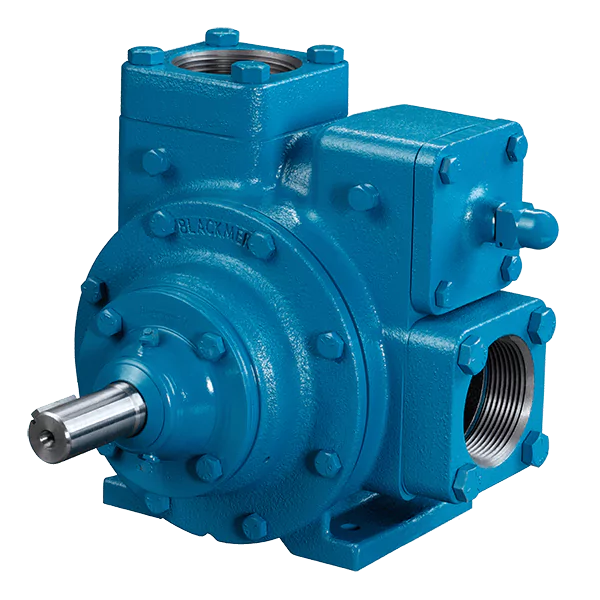

• The drive shaft is dual-ended, allowing rotation in either clockwise (RH) or counterclockwise (LH) directions.
• Roller ball bearings on the exterior support the rotor from both sides, establishing a stable environment for the internal mechanical seals.
• Installation is simplified with a dual-ended shaft featured in 2-, 2.5-, and 3-inch models.
• Maximum reliability is achieved through the implementation of Blackmer mechanical seal and ball-bearing construction.
• Internal mechanical seals enable extended dry run capability and continuous operation, particularly with non-lubricating liquids.
• Symmetrical bearing support guarantees even loading and wear, ensuring a prolonged operational life.
• The pump is equipped with an adjustable relief valve to protect against excessive pressures.
• T-type strainers are offered to safeguard pumping systems from damage caused by welding slag and foreign matter in pumps and tanks.
• High volumetric efficiency and symmetrical bearing support result in lower required horsepower compared to other PD pumps, leading to cost savings in both motor operation and electricity.
• External ball-bearings are strategically isolated from pumpage by mechanical seals, maximizing bearing life and minimizing the risk of contamination.
• Maintenance is made easy, as vanes can be replaced without the necessity of removing the pump from the truck.

• The distinctive design of the sliding-vane pump automatically adapts to wear, ensuring the preservation of flow rates.
• Remarkable self-priming and dry-run capabilities are key features of this pump.
• The sliding vane design ensures consistent performance and trouble-free operation.
• Impressive suction lift and effective line-stripping capabilities are inherent in this pump.
• This pump boasts low maintenance requirements, contributing to overall low life-cycle costs.

AVAILABLE MODELS

• TX1.5
• TXD(I)2
• TXD(I)2.5
• TXD(I)3
• TX(I)4

NOMINAL FLOW RATE

• TX1.5: 56 gpm (212 L/min)
• TXD(I)2: 87 gpm (329 L/min)
• TXD(I)2.5: 157 gpm (594 L/min)
• TXD(I)3: 270 gpm (1,022 L/min)
• TX(I)4: 505 gpm (1,911 L/min)

CATALOG OPTIONS

• Connections: NPT, Weld, Victaulic
• Elastomers: BUNA, FKM, PTFE
• Valve: Corrosion resistant
• Bypass: 1-stage or pneumatic 2-stage
• Inlet Strainer, Hydraulic Motor Adapter

DIFFERENTIAL PRESSURE

• 125 psi (8.6 bar)

MAXIMUM WORKING PRESSURE (MAWP)

• 175 psi (15.5 bar)

VISCOSITY

• 1.0 - 4250 cP

VANE MATERIALS

• Duravane
• Bronze

PRIMARY MATERIALS OF CONSTRUCTION

• TX & TXD: Cast Iron
• TXI & TXDI: Ductile Iron

CONNECTION ORIENTATION

• TX & TXD: Side Inlet | Top Outlet
• TXI & TXDI: Side Inlet | Side Outlet

TEMPERATURE

• -25°F to 240°F (-32°C to 115°C)

MIN/MAX SPEED (RPM)

• TX1.5: 200 - 800
• TXD(I)2 & TXD(I)2.5: 70 - 780
• TXD(I)3: 70 - 640
• TX(I)4: 70 - 520

AVAILABLE CERTIFICATES

• Hydrostatic Test
• Performance Test
• NPSH Test
• Material (actual or typical)
• Dimensional (pump only or unit)
