MS Series Meters

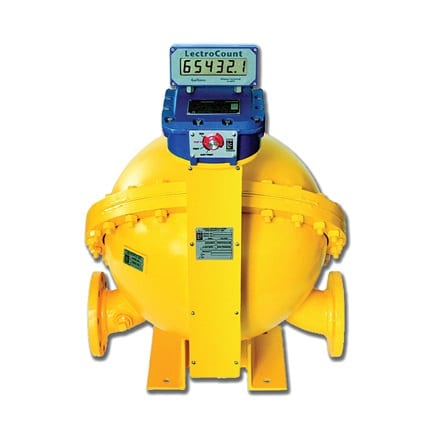

Liquid Controls steel-case MS-Series rotary motion positive displacement (PD) meters offer the ultimate in flow measurement accuracy for bulk custody transfer of petroleum products, aviation fuels, LPG, crude oil, petrochemicals, and a broad range of industrial liquids. Liquid Controls MS-Series meters consist of an outer spherical steel-case shell with flanged inlet and outlet ports. The shell houses a traditional LC metering element that employs three rotating and synchronized rotors. These rotors accurately segment flow into a precise volume of liquid for each revolution, with no metal-to-metal contact inside the measuring chamber.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Liquid Controls MS-Series meters consist of an outer spherical steel-case shell with flanged inlet and outlet ports. The shell houses a traditional LC metering element that employs three rotating and synchronized rotors. These rotors accurately segment flow into a precise volume of liquid for each revolution, with no metal-to-metal contact inside the measuring chamber. Hydraulic sealing between the rotors and the measuring chamber wall is accomplished by a stationary boundary layer of liquid—not by the wiping action of mechanical parts—thereby ensuring sustained accuracy, long service life with minimal wear, and low pressure drop suitable for operation on gravity low or pump pressure.

All MS-Series spherical shells are constructed of steel or stainless steel. Epoxy coated versions are available for aviation applications. Metering elements are available in metallurgies and seal materials suitable for a wide range of petroleum, petrochemical, and industrial applications.

Liquid Controls

AYTC is an authorized full service distributor of Liquid Controls Flow Meters in UAE. Liquid Controls has been dedicated to providing high quality positive displacement, electromagnetic and Coriolis (mass) flow meters and accessories for accurate liquid measurement in both custody transfer and process control applications.

Meter housing: Steel or stainless steel (epoxy coated steel available for aviation and other applications)
Meter element and rotors: Cast aluminum (other metalurgies available including cast iron and stainless steel)
Internal components: Aluminum, Ni-Resist, stainless steel, iron
Seal materials: Buna-N, Viton®, PTFE
Bearings: Carbon, PTFE, Ni-Resist

Liquid Controls MS-Series meters meet NTEP (NIST Handbook 44) and International Weights and Measures accuracy requirements as well as U.S. Military specifications.

Available Models	Size	Maximum Nominal Flow Rate
MS, MSAA, MSA, MSB or MSC 7	2″	100 gpm / 380 L/min
MS, MSAA, MSA, MSB or MSC 15	3″	200 gpm / 760 L/min
MS, MSAA, MSA, MSB or MSC 30	3″	350 gpm / 1,325 L/min
MS or MSAA 40	3″	450 gpm / 1,700 L/min
MS, MSAA, MSA, MSB or MSC 75	4″	700 gpm / 2,650 L/min
MS, MSAA, MSA, MSB or MSC 120*	6″ or 8″	1,000 gpm / 3,785 L/min

*Rated to 1,200gpm with 8″ flanges

MS-Series meters are available with a selection of bolt-on strainers and air eliminators for the inlet side, and a selection of manual or solenoid actuated valves for the meter outlet. Mechanical and electronic registration equipment and printers are also available.

Available ModelsPressure RatingMS150psi / 10.5 BARMSAA275psi / 19 BARMSA300psi / 21 BARMSB720psi / 50 BARMSC1,440psi / 100 BAR

Class 1	Refined petroleum products, such as leaded and unleaded gasoline, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) and propylene glycol. Also used on motor oils, crop oils and rotogravure ink at reduced rates of flow.
Class 2	Aviation gasoline and jet fuels
Class 3	Variety of products such as: liquid sugars, corn syrup, corn sweeteners, dextrose, fructose, sucrose maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil and shortening’s etc.
Class 4	Treated waters and certain solvents where no red metals are allowed.
Class 7	Chlorinated solvents such as: perchloroethylene, trichloroethylene, trichloroethane and methlyene chloride. Also used for general solvent service.
Class 8	Acid pH liquids such as: nitric, phosphoric, glacial acetic acids, citric (fruit juices) and vinegars.
Class 10	Liquefied petroleum gas (LPG) including butane, isobutane, pentane, ethane, freons, and propane.
Class 12	Anhydrous ammonia (NH3).
Class 14	Crude oil. For heated and/or viscous liquids including animal fats, resins, #6 oil and non-abrasive asphalt emulsions.
Class 15	Oil or water based latex products, polyester resins, adhesives, herbicides, nitrogen fertilizers.
Class 16	General solvent metering service such as: methanol, toluene, xylene, naphtha, acetone, MEK, MIBK, and alcohols including ethanol (also 200-proof alcohol). Class 7 meters should be used if the application involves the use of chlorinated solvents
Class 20	Batch process water meter service. May be used for solvents and other liquids compatible with brass.
Class 27	Alkaline pH liquids: latex products, adhesives, some liquid fertilizers (10-34-0).
Class 30	Herbicides such as such as Aatrex, Atrazine, Bicep, Bladex, Dual, Lasso, Lasso ME, Treflan, Sutan, Sutazine, and Eradicane (requires PTFE seals).
Class 37	Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD), and other alkaline pH liquids including non-abrasive asphalt emulsions, liquid feed (molasses) supplements, and some resins. Construction suitable for heated and/or viscous liquids.
Class 47	Mildly abrasive liquids.
