MA Series Meters

Liquid Controls MA-Series rotary motion positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of LPG. LC meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer re-calibrations, and longer service life.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Liquid Controls

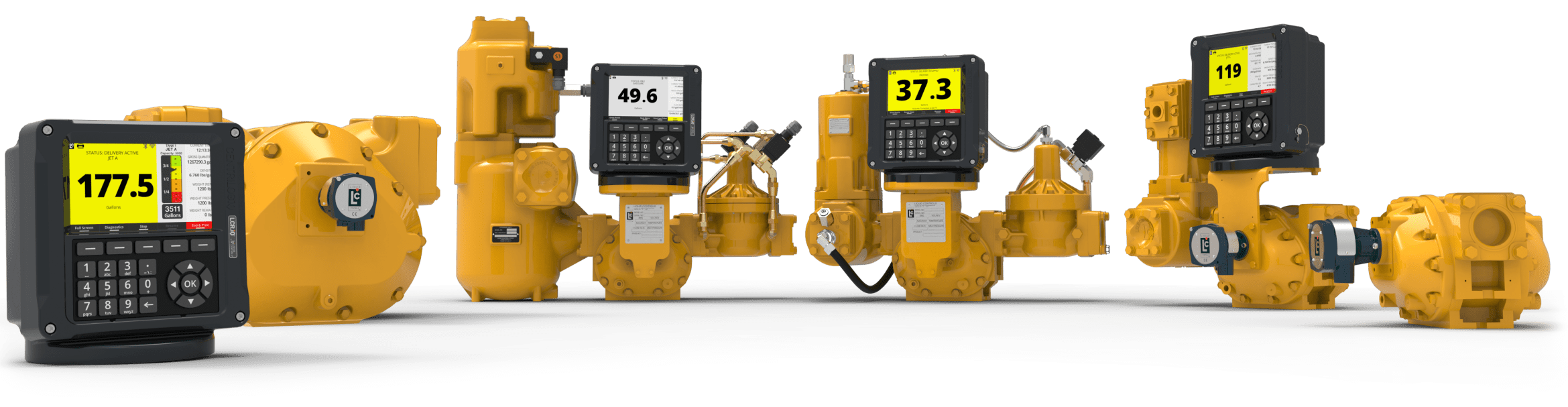

AYTC is an authorized full service distributor of Liquid Controls Flow Meters in UAE. Liquid Controls has been dedicated to providing high quality positive displacement, electromagnetic and Coriolis (mass) flow meters and accessories for accurate liquid measurement in both custody transfer and process control applications.

Low pressure drop—will operate on gravity flow or pump pressure.
Sustained accuracy—no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Meters conform to NIST and International Weights and Measures accuracy requirements.
Wide temperature range—products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
Wide viscosity range—LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
Maximum adaptability—right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
Rated to 350psi / 21 BAR.

Pressure Rating: 350psi / 21 BAR

Available Models	Size	Maximum Nominal Flow Rate
MA4	1-1/2″	30 gpm / 113 L/min
MA5	2″ or 1-1/2″	60 gpm / 227 L/min
MA7	2″	100 gpm / 380 L/min
MA15	3″	200 gpm / 757 L/min

Meter and rotors: Cast aluminum
Internal components: Aluminum, Ni-Resist
Seal materials: Buna-N
Bearings: Carbon

Liquid Controls M-Series meters meet NTEP (NIST Handbook 44) and International Weights and Measures accuracy requirements as well as U.S. Military specifications.

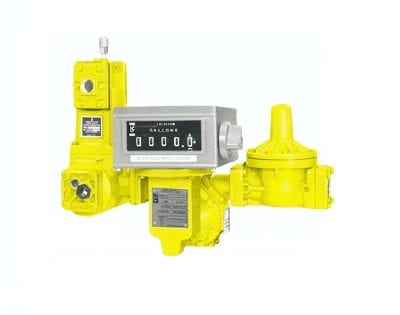

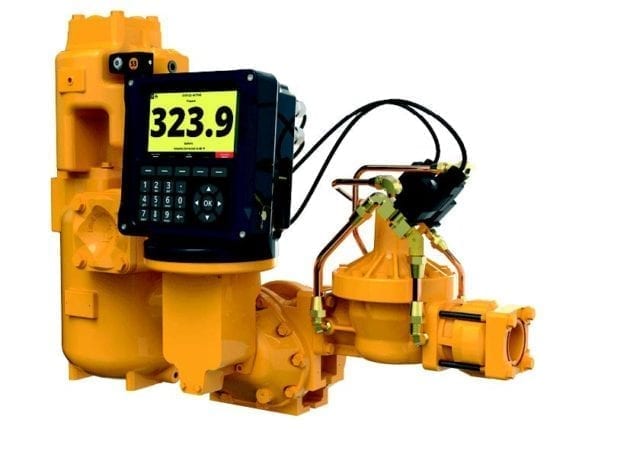

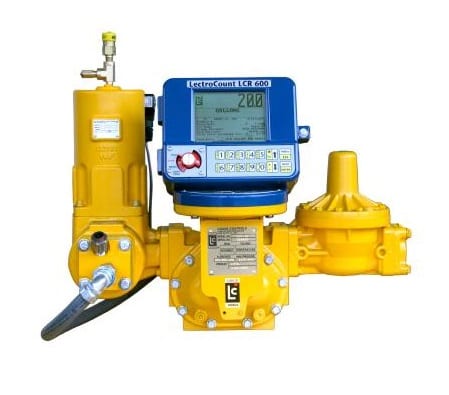

MA-Series meters are available with a selection of bolt-on strainers and air eliminators for the inlet side, and a selection of manual or solenoid actuated valves for the meter outlet. Mechanical and electronic registration equipment and printers are also available.

Class 1	Refined petroleum products, such as leaded and unleaded gasoline, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) and propylene glycol. Also used on motor oils, crop oils and rotogravure ink at reduced rates of flow.
Class 2	Aviation gasoline and jet fuels
Class 3	Variety of products such as: liquid sugars, corn syrup, corn sweeteners, dextrose, fructose, sucrose maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil and shortening’s etc.
Class 4	Treated waters and certain solvents where no red metals are allowed.
Class 7	Chlorinated solvents such as: perchloroethylene, trichloroethylene, trichloroethane and methlyene chloride. Also used for general solvent service.
Class 8	Acid pH liquids such as: nitric, phosphoric, glacial acetic acids, citric (fruit juices) and vinegars.
Class 10	Liquefied petroleum gas (LPG) including butane, isobutane, pentane, ethane, freons, and propane.
Class 12	Anhydrous ammonia (NH3).
Class 14	Crude oil. For heated and/or viscous liquids including animal fats, resins, #6 oil and non-abrasive asphalt emulsions.
Class 15	Oil or water based latex products, polyester resins, adhesives, herbicides, nitrogen fertilizers.
Class 16	General solvent metering service such as: methanol, toluene, xylene, naphtha, acetone, MEK, MIBK, and alcohols including ethanol (also 200-proof alcohol). Class 7 meters should be used if the application involves the use of chlorinated solvents
Class 20	Batch process water meter service. May be used for solvents and other liquids compatible with brass.
Class 27	Alkaline pH liquids: latex products, adhesives, some liquid fertilizers (10-34-0).
Class 30	Herbicides such as such as Aatrex, Atrazine, Bicep, Bladex, Dual, Lasso, Lasso ME, Treflan, Sutan, Sutazine, and Eradicane (requires PTFE seals).
Class 37	Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD), and other alkaline pH liquids including non-abrasive asphalt emulsions, liquid feed (molasses) supplements, and some resins. Construction suitable for heated and/or viscous liquids.
Class 47	Mildly abrasive liquids.
