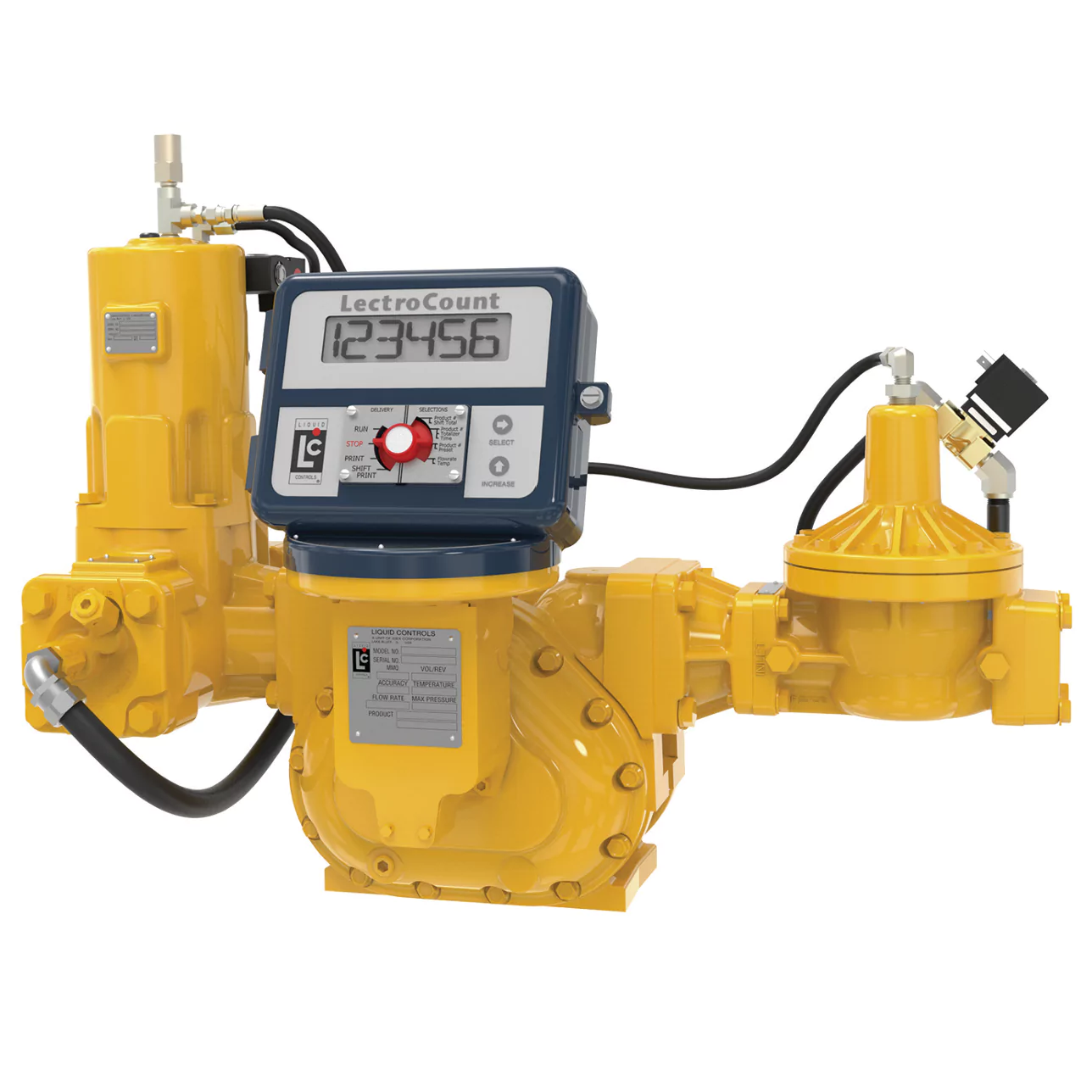

MA15 — 3" LC Meter (756 LPM)

Rating: 756 LPM, 350 psi (24 bar, 2414 kPa)
Flange: 3″ (or 3″ in and 2″out)
Meter Construction: Aluminum
Seals: Buna N, (EPDM for class 12)
Maximum Pressure: 350 psi (as listed by catalog number)
Temperature: -40° to 160° F (-40° to 71.1° C)

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Class 10 Meters
Class 12 Meters
Dimension

Meter Class	Description	Bearing Material
10	Liquified petroleum gas (LPG) such as propane	Carbon
12	Anhydrous Ammonia (NH3)	Carbon

MA15C10
METER WITH REGISTER + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK		W&M
LCR®-II REGISTRATION
MA15CY10-LCR2-E#1	L-R	LITERS	2" Differential & 12VDC Solenoid	3"	150	Mech Vapor Eliminator	Y	N	SL200 ST201	CAN
MA15CY10-LCR2-I#1	L-R	1/10 GAL	2" Differential & 12VDC Solenoid	3"	150	Mech Vapor Eliminator	Y	N	SL200 ST258	NIST
MA15CY10-LCR2-I#3 (Cl 1, Div 1)	L-R	1/10 GAL	2" Differential & 12VDC Solenoid	3"	150	Mech Vapor Eliminator	Y	N	SL200 ST200	NIST
MECHANICAL REGISTRATION
MA15CY10-MECH-NP#2	L-R	1/10 GAL	2" Differential	3"	150	Mech Vapor Eliminator	Y	N	N/A	NIST
POD (PULSE OUTPUT DEVICE)
MA15C10-POD#1	L-R	1/10 GAL	N/A	3"	150	Mech Vapor Eliminator	N	N	N/A	NIST
MA15C10-POD#2	L-R	1/10 GAL	N/A	3”	150	Optical Vapor Eliminator	N	N	N/A	NIST

MA15G10

METER WITH REGISTER + PRINTER + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK	PRINTER STYLE	W&M
MECHANICAL REGISTRATION
MA15GY10-MECH-NP#1	L-R	WH. GAL	2" Differential	3"	150	Mech Vapor Eliminator	Y	N	FACE UP	NIST
MA15GY10-MECH-NP#2	L-R	1/10 GAL	2" Differential	3"	150	Mech Vapor Eliminator	Y	N	FACE UP	NIST
MA15GY10-MECH-NP#3	L-R	LITERS	2" Differential	3"	150	Mech Vapor Eliminator	Y	N	FACE UP	NIST

MA15K10

METER WITH REGISTER + PRESET VALVE + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	INLET CHECK	SOFTWARE	W&M APPROVAL
LCR.iQ® REGISTRATION
MA15KY10-LCR.IQ-I#1	L-R	1/10 GAL	2" 2-Stage Preset Valve, 12VDC, 3X2 Adapter	3"	150	Mech Vapor Eliminator	Y	N	SL200 ST258	NIST
LCR®-II REGISTRATION
MA15KY10-LCR2-E#1	R-L	1/10 GAL	2" 2-Stage Preset Valve, 12VDC, 3X2 Adapter	3"	150	Optical Vapor Eliminator	Y	N	SL200 ST258	NIST
MA15KY10-LCR2-I#1	L-R	1/10 GAL	2" 2-Stage Preset Valve, 12VDC, 3X2 Adapter	3"	150	Mech Vapor Eliminator	Y	N	SL200 ST258	NIST
MA15KY10-LCR2-I#2	L-R	1/10 GAL	2" 2-Stage Preset Valve, 12VDC, 3X2 Adapter	3"	150	Optical Vapor Eliminator	Y	N	SL200 ST258	NIST
MA15KY10-LCR2-I#3	R-L	1/10 GAL	2" 2-Stage Preset Valve, 12VDC, 3X2 Adapter	3"	150	Optical Vapor Eliminator	Y	N	SL200 ST258	NIST

MA15P10

METER LESS REGISTER AND GEAR PLATE

CATALOG NUMBER	FLOW	UNIT OF MEASURE	W&M APPROVAL
LESS REGISTER AND GEAR PLATE
MA15P10-LRG#1	L-R	1/10 GAL	NIST
MA15P10-LRG#2	L-R	LITRES	OIML

MA15C12
METER WITH REGISTER + STRAINER + VAPOR ELIMINATOR

CATALOG NUMBER	FLOW	UNIT OF MEASURE	VALVE	STRAINER TYPE	MESH	VAPOR ELIMINATOR	TEMP COMP.	SOFTWARE	W&M APPROVAL
LCR®-II REGISTRATION
MA15CY12-LCR2-E#1	L-R	LITRES	2" Differential & 12VDC Solenoid	3"	150	MECH	Y	SL200 ST202	CAN
