Corken 691 Compressor

Specifications

Model

691/F691

Bore of cylinder: inches (mm)

4.5 (114.3)

Stroke: inches (mm)

4.0 (101.6)

Piston displacement cfm (m3/hr)

minimum @ 400 RPM

axmimum @ 825 RPM



29.5 (50.1)

60.8 (103.3)

Maximum working pressure: psig (bar g)

335 (23.1)

Maximum brake horsepower: hp (kW)

35 (26.1)

Maximum rod load: lb (kg)

7,000 (3,175)

Maximum outlet temperature: °F (°C)

305 (177)

Minimum inlet temperature: °F (°C)

-25 (-32)

Bare unit weight: lb (kg)

745 (337.9)

Maximum flow-propane: gpm (m3/hr)

361 (82.0) b

Class 300 RF flange/DIN flange option

Yes

  • badge1 Original Products
  • badge2 Warranty Against Defects
  • badge3 Returns & Refunds Policy
  • badge4 Ships Worldwide
  • badge5 Dedicate Support

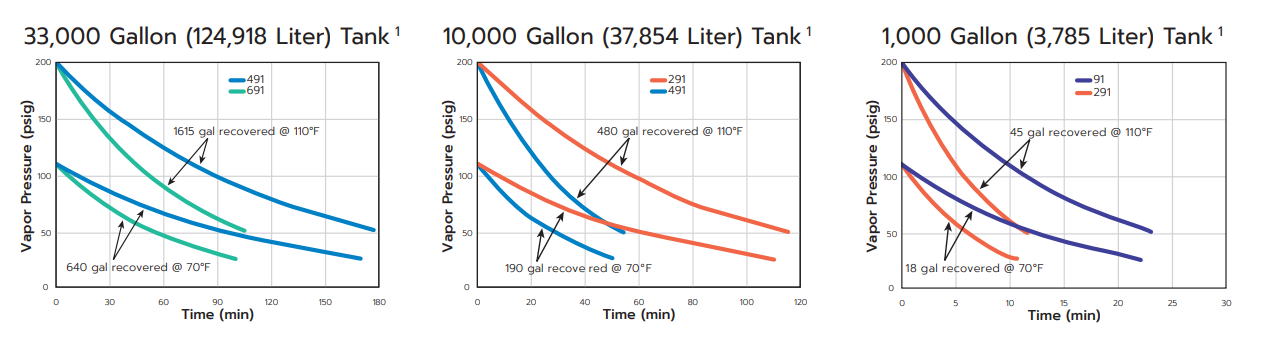

  • Performance Curve
  • Models
  • Standard Mounting
  • Mounting
  • Propane Compressor Selection Table
  • Ammonia Compressor Selection Table
  • Parts Lists

Standard 107 Items

  • Steel baseplate
  • V-belt drive
  • Adjustable driver side base
  • Enclosed steel guard
  • Suction and discharge
  • pressure gauges
  • 40 Micron strainer
  • Non-lube 4-way valve
  • Interconnecting piping
  • Liquid trap as specified below

107 Mounting

Mechanical liquid trap with ball float

107A Mounting

Automatic liquid trap with one NEMA 7 liquid level switch

107B Mounting

Automatic liquid trap with two NEMA 7 liquid level switches

107F Mounting

107A or 107B with Class 300 RF flanged components and connections

Standard 109 Items

  • Steel baseplate
  • V-belt drive
  • Adjustable driver side base
  • Enclosed steel guard
  • Suction and discharge pressure gauges
  • 40 Micron strainer
  • Non-lube 4-way valve
  • Interconnecting piping
  • Liquid trap as specified below

109 Mounting

Mechanical liquid trap with ball float

109A Mounting

Automatic liquid trap with one NEMA 7 liquid level switch

109B Mounting

Automatic liquid trap with two NEMA 7 liquid level switches

109F Mounting

109A or 109B with Class 300 RF flanged components and connections

Mounting Style

Description

Part No.

Model Reference

Ship Weight (Ib) Compressor w/ Mounting

103 Style

Mounting includes steel baseplate, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.

103-8 (a) (b)

691AM3FBANSNN

850

107 Style

Mounting includes steel baseplate, mechanical liquid trap, non-lube 4-way valve, interconnecting piping, strainer, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor

107-7 (a) (b)

691AM3FBANSNN

975

107A Style

Mounting includes steel baseplate, automatic liquid trap with NEMA 7 liquid level switch to stop compressor. Non-lube 4-way valve, interconnecting piping, strainer, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.

107A-7 (a) (b)
107A-15 (a) (b)

691AM3FBANSNN
F691AM3FBANSNN

975
1,000

107B Style

Mounting includes steel baseplate, ASME code liquid trap with two NEMA 7 liquid level switches for alarm and to stop compressor. Non-lube 4-way valve interconnecting piping, strainer and adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.

107B-7 (a) (b)
107B-19 (a) (b)

691AM3FBANSNN
F691AM3FBANSNN

1,200
1,200

109 Style

Mounting includes steel baseplate, mechanical liquid trap, interconnecting piping, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges mounted on the compressor.

109-10 (a) (b)

691AM3FBANSNN

955

109A Style

Mounting includes steel baseplate, automatic liquid trap with NEMA 7 liquid level, switch to stop compressor, interconnecting piping, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.

109A-7 (a) (b)

491AM3FBANSNN

550

109B Style

Mounting includes steel baseplate, ASME automatic liquid trap with two NEMA 7, liquid level switches for alarm and to stop compressor, interconnecting piping, adjustable driver slide base, V-belt drive and enclosed belt guard. Pressure gauges are mounted on the compressor.

109B-10 (a) (b)
109B-19 (a) (b)

691AM3FBANSNN
F691AM3FBANSNN

1,175
1,200

Please note:
Above mountings are not applicable to the flanged compressors models F91–F691.
(a) Specify compressor speed
(b) Specify motor frame size (motor frequency / hertz)
(e) These units are not supplied with relief valves. A relief valve must be installed that is suitable for the service relief valve(s).
(f) Compressors must be equipped with extended crankshaft and special flywheel in order to use this mounting.







Service







Capacity 1







Displacement cfm







Compressor





Driver Sheave Size P.D." 2

Driver Horsepower







Piping Size 3

Liquid Transfer and Residual Vapor

Recovery

Liquid Transfer without Residual Vapor

Recovery

Model

RPM

1,750 RPM

1,450 RPM

100°F

80°F

100°F

80°F

Vapor

Liquid



Small bulk plants

23

4

91

400

A 3.0

B 3.6

5

3

3

3

3/4

1-1/4

29

5

91

505

B 3.8

B 4.6

5

5

5

5

3/4

1-1/4

34

6

91

590

B 4.6

B 5.6

5

5

5

5

1

1-1/4

40

7

91

695

B 5.4

B 6.6

5

5

5

5

1

1-1/2

39

7

291

345

A 3.0

A 3.6

3

3

3

3

1

1-1/2





Unloading single tank car or transport

45

8

91

800

B 6.2

B 7.4

7-1/2

7-1/2

7-1/2

7-1/2

1

1-1/2

44

8

291

390

A 3.4

B 4.0

5

3

3

3

1

1-1/2

50

9

291

435

A 3.8

B 4.6

5

5

3

3

1

1-1/2

56

10

291

490

B 4.4

B 5.2

5

5

5

5

1

2

61

11

291

535

B 4.8

B 5.8

5

5

5

5

1

2

66

12

291

580

B 5.2

B 6.2

7-1/2

5

5

5

1

2

71

13

291

625

B 5.6

B 6.6

7-1/2

5

7-1/2

5

1-1/4

2

79

14

291

695

B 6.2

B 7.4

7-1/2

7-1/2

7-1/2

7-1/2

1-1/4

2

84

15

291

735

B 6.6

B 8.0

10

7-1/2

10

7-1/2

1-1/4

2-1/2

84

15

491

345

A 3.0

A 3.6

7-1/2

7-1/2

5

5

1-1/4

2-1/2

89

16

291

780

B 7.0

B 8.6

10

10

10

10

1-1/4

2-1/2

89

16

491

370

A 3.2

A 3.8

7-1/2

7-1/2

7-1/2

5

1-1/4

2-1/2









Unloading two or more tank cars

at one time or large transport with excess flow valves of adequate capacity

95

17

491

390

A 3.4

B 4.0

7-1/2

7-1/2

7-1/2

7-1/2

1-1/4

3

101

18

491

415

A 3.6

B 4.4

10

7-1/2

7-1/2

7-1/2

1-1/4

3

106

19

491

435

A 3.8

B 4.6

10

7-1/2

7-1/2

7-1/2

1-1/4

3

108

20

491

445

B 4.0

B 4.8

10

7-1/2

7-1/2

7-1/2

1-1/4

3

114

21

491

470

B 4.2

B 5.0

10

7-1/2

7-1/2

7-1/2

1-1/4

3

119

22

491

490

B 4.4

B 5.2

10

10

7-1/2

7-1/2

1-1/4

3

125

23

491

515

B 4.6

B 5.6

10

10

10

7-1/2

1-1/4

3

130

24

491

535

B 4.8

B 5.8

15

10

10

10

1-1/4

3

136

25

491

560

B 5.0

B 6.0

15

10

10

10

1-1/4

3

141

26

491

580

B 5.2

B 6.2

15

10

10

10

1-1/4

3

147

27

491

605

B 5.4

B 6.4

15

10

15

10

1-1/4

3

152

28

491

625

B 5.6

B 6.6

15

15

15

15

1-1/2

3

158

29

491

650

B 5.8

B 7.0

15

15

15

15

1-1/2

3

163

30

491

670

B 6.0



15

15

15

15

1-1/2

3

163

30

691

400

B 4.4

B 5.2

15

15

10

10

1-1/2

3

168

31

491

695

B 6.2

B 7.4

15

15

15

15

1-1/2

3

171

31

691

420

B 4.6

B 5.6

15

15

10

10

1-1/2

3

179

32

491

740

B 6.6

B 8.0

15

15

15

15

1-1/2

3

178

32

691

440

B 4.8

B 5.8

15

15

10

10

1-1/2

3

186

34

691

455

B 5.0

B 6.0

15

15

15

10

1-1/2

3

193

35

691

475

B 5.2

B 6.2

15

15

15

10

1-1/2

3

200

36

691

495

B 5.4

B 6.4

15

15

15

15

1-1/2

3





Unloading large  tank cars, multiple vessels, barges or terminals

208

38

691

510

B 5.6

B 6.8

20

15

15

15

1-1/2

4

215

39

691

530

B 5.8

B 7.0

20

15

15

15

1-1/2

4

223

41

691

550

B 6.0

A 7.0

20

15

15

15

1-1/2

4

230

42

691

565

B 6.2

B 7.4

20

15

15

15

2

4

237

43

691

585

B 6.4

A 7.4

20

15

15

15

2

4

245

45

691

605

B 6.6

B 8.0

20

15

15

15

2

4

252

46

691

620

B 6.8



20

20

15

15

2

4

260

47

691

640

B 7.0

A 8.2

20

20

20

15

2

4

275

48

691

675

B 7.4

B 8.6

25

20

20

20

2

4

297

54

691

730

B 8.0

B 9.4

25

20

20

20

2

4

319

58

691

785

B 8.6



25

20

25

20

2

4

334

60

691

820

TB 9.0

A 10.6

30

25

25

20

2

4

452

82

D/FD891

580

5V 7.1

5V 8.5

30

30

30

30

3

6

623

113

D/FD891

800

5V 9.75

5V 11.8



40

40

30

3

6
