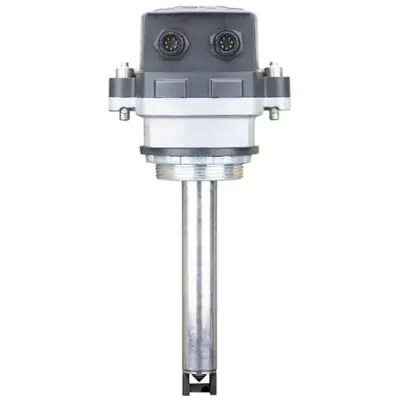

Using the Scully Connect Sensor, an innovative tool-free overload avoidance sensor, you may quickly, easily, and installation of your override prevention system without errors. Hours of installation time will be saved, the system won't be improperly wired, and connections will be smooth. The sensor and cabling system, which has a patent pending, has been built for dependable performance and optimal safety.
Quick connectors on the sensor make it easy to install and repair the sensor, and a new sensor lever makes it possible to change the sensor's height without the need of tools and without worrying about corrosion.
The outside cable connectors on the cap have tough tool-free handles, marine-grade watertight tying, and a cable locking option to prevent sensor manipulation. The sensor and cap have undergone comprehensive eld testing to ensure that they can endure harsh weather conditions.
Operating Temperature Range:
-40°F to +140°F (-40°C to +60°C)
Petroleum Product Range:
Gasoline blends & light fuel oils
Exposed Materials:
Aluminum, borosilicate (Pyrex®) glass, epoxy, conductive nylon and Viton® seals
Level Repeatability:
±1⁄16” (±1 mm)
Detection Level & Size:
The detection level is adjustable; refer to sensor outline drawing, shown for 7” shaft length
Approvals:
The sensor is intrinsically safe for mounting in Class I, Division 1, Groups C & D Hazardous location in accordance with Scully Control Unit approval ratings.
