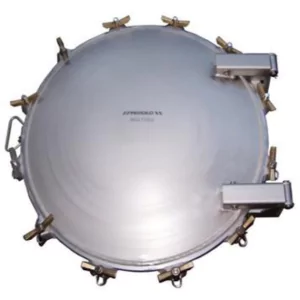

The ND900 Multido manlid is designed to fit tank containers, road tankers, and storage tanks for liquid food and chemical waste. It can be mounted either horizontally or vertically. For easier opening and ideal tightness, use the two-hinge system.
Nominal diameter |
900 mm (36'') |
Weight |
112 Kg |
Fastening points |
12 |
Working Pressure |
1 Bar |
Test Pressure |
1.5 Bar |
Working Temperature |
-40° to + 120°C |
Made of (material) |
304L/1.4307-316L/1.4404-Carbon Steel |
Seal material |
seal not included |
Neckring height |
from 100 mm to 400 mm |
Neckring thickness |
6 mm |
Fastening |
Swingbolts with captive wing nuts |
Perfect tightness |
Trapezoïdal seal groove 10x14 |
Complete ND900 Multido manlid - 304L st st - 12 points - neckring 400mm high - with safebolt |
17 13 01 00 00 |
Coverlid |
17 13 01 20 00 |
Coverlid seal neoprene |
17 13 01 00 01 |
