Centrifugal Pumps vs. Rotary Pumps: Understanding the Differences

Choosing the most suitable pump for your processing needs can be a daunting task, given the array of options available. It's crucial to conduct thorough research before purchasing to ensure you select the optimal pump for your application. This investment of time and resources upfront can prevent future complications. Today, we'll delve into the distinctive characteristics of two prominent pump types: centrifugal pumps and rotary pumps. We'll explore the engineering principles that set them apart, their respective strengths and weaknesses, and the specific applications where each excels.

Basics of Centrifugal Pumps

Centrifugal pumps harness the power of centrifugal force generated by the rotation of an impeller to transfer liquids. They operate by utilising the centrifugal motion induced by the impeller's rotation. Before initiating the centrifugal pump, it's essential to prime the pump casing and suction pipe with liquid. Once the motor initiates operation, the pump shaft drives the impeller, causing the liquid to undergo high-speed rotational movement and centrifugal motion. Subsequently, the liquid is propelled towards the outer edge of the impeller and flows into the pump's pressure pipe through the flow channel of the pump casing.

The fundamental components of a centrifugal pump include the impeller, pump body, pump cover, retaining ring, pump shaft, bearing, sealing ring, stuffing box, and axial force balancing device, among others. The impeller serves as the core, regulating rotation speed and output strength. Meanwhile, the pump body functions as the primary support structure and is connected to the bracket for bearing mounting.

The pump shaft acts as the conduit for transmitting torque from the motor to the impeller, facilitating the transfer of mechanical energy. Additionally, the sealing ring minimizes leakage, while the stuffing box, comprising packing, prevents fluids from escaping the pump and maintains an internal vacuum. To dissipate heat generated by friction between the pump shaft and packing, a seal tube injects coolant into the sealing ring.

An axial force balancing device is crucial to counteract the imbalanced pressures exerted on the impeller during operation. This imbalance can lead to axial thrust, causing rotor movement, friction, and vibration. Therefore, an axial thrust bearing is incorporated to mitigate these forces and ensure smooth operation.

Basics of Rotary Pumps

Rotary pumps represent a category of rotating displacement pumps characterized by positive displacement mechanisms. These pumps augment the energy of the liquid by altering the working volume through the relative motion between the rotor and the pump body. Unlike centrifugal pumps, rotary pumps lack suction and discharge valves. Instead, they modify the working volume through the rotational movement of the rotor, thereby discharging liquid via the squeezing action of the rotating rotor while creating a low-pressure space to facilitate continuous liquid intake.

The structure of rotary pumps encompasses various types, including gear pumps, screw pumps, vane pumps, rotary piston pumps (such as lobe pumps and Roots pumps), flexible impeller pumps, sliding vane pumps, and hose pumps. Rotary pumps operate as rotary volumetric pumps with positive displacement characteristics, ensuring that flow remains consistent irrespective of air pressure fluctuations.

In industrial manufacturing contexts, centrifugal pumps constitute approximately 80% of the total pump inventory, while rotary pumps make up around 10%. Due to their distinct operational principles, centrifugal pumps and rotary pumps are suited to different applications. The following sections delineate the distinguishing features of rotary pumps and centrifugal pumps.

Centrifugal Pump Applications

Centrifugal pumps find extensive utility in liquid transportation, leveraging impeller centrifugal force to create a vacuum suction for lifting liquids. Before initiating a centrifugal pump, it's imperative to close the gate valve and ensure the fluid level surpasses the impeller section, allowing for the discharge of air within the pump. Upon starting, the impeller forms a vacuum, drawing fluid upward, with the gate valve automatically opening to facilitate fluid lifting. Considerations for choosing a centrifugal pump include:

Compact structure: Centrifugal pumps boast a compact design, suitable for space-constrained environments.

Wide flow and head range: These pumps offer versatility in handling varying flow rates and head pressures.

Suitability for corrosive liquids: With proper material of construction, and seals centrifugal pumps are adept at handling corrosive fluids.

Various control options: They offer flexibility with different control mechanisms including bypassing, throttling, variable speed drive (VSD), and on-off controls.

Uniform flow, smooth operation, and low vibration: Centrifugal pumps ensure consistent flow, smooth functioning, and minimal vibration, eliminating the need for specialized vibration-damping foundations.

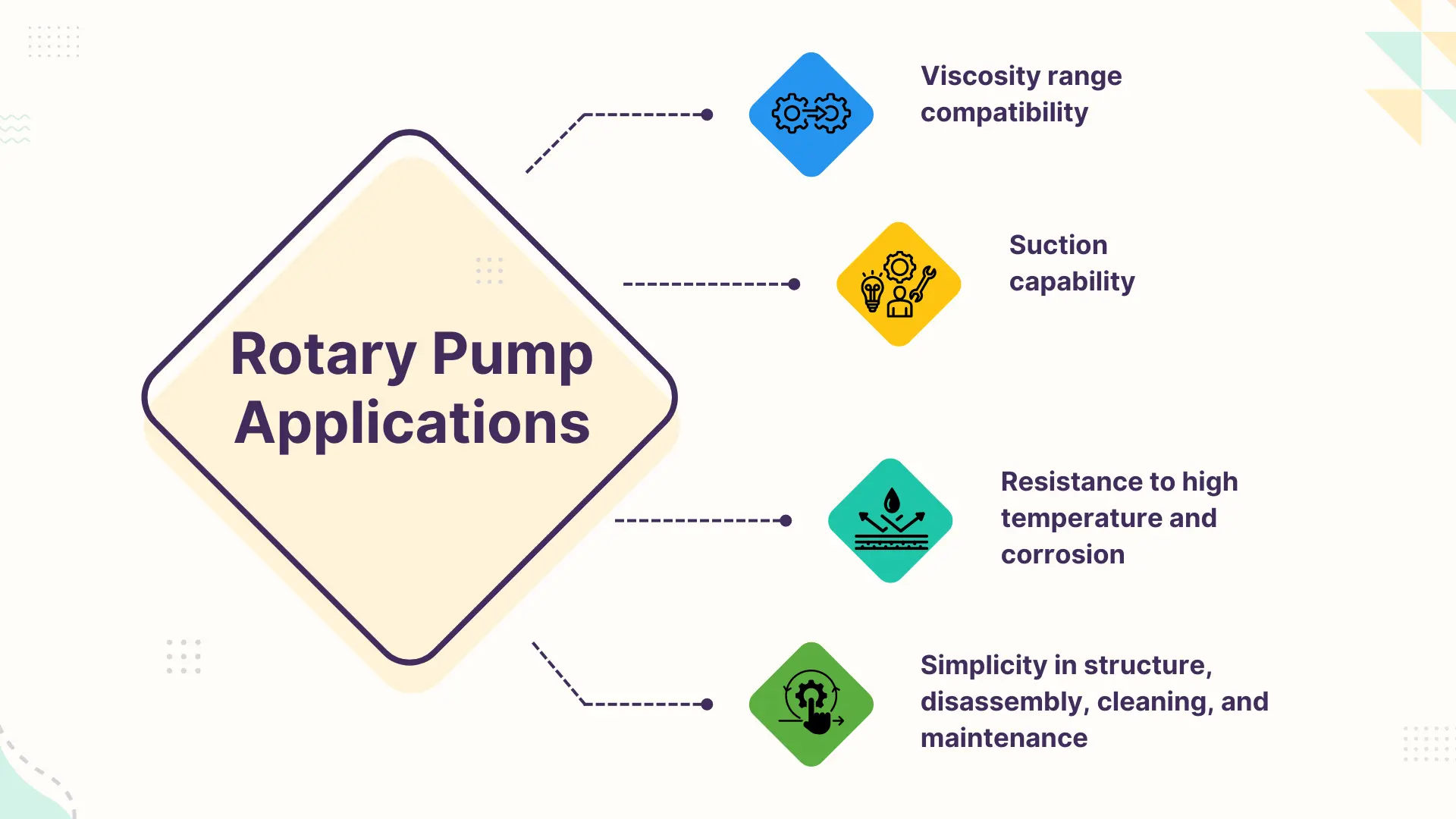

Rotary Pump Applications

Rotary pumps excel in transporting liquids across a spectrum of viscosities, offering advantages unmatched by other pump types. However, considerations extend beyond viscosity, encompassing factors such as high temperature, high pressure, corrosion, and solid particle content. When selecting a rotary pump, the following requirements merit attention:

Viscosity range compatibility: Choose a pump suitable for the viscosity range of the liquid being transported.

Suction capability: Evaluate pumping performance, particularly at high viscosity levels.

Resistance to high temperature and corrosion: Opt for pumps equipped to withstand elevated temperatures, corrosive environments, and other challenging conditions.

Simplicity in structure, disassembly, cleaning, and maintenance: Prioritize pumps with straightforward designs, facilitating easy disassembly, cleaning, and maintenance procedures.

Difference Between Rotary And Centrifugal Pumps

Rotary and centrifugal pumps are both common types of pumps used for various fluid handling applications, but they operate on different principles and have distinct characteristics.

Variance in Conveyed Mediums

Here are the differences between rotary and centrifugal pumps that are crucial for making informed decisions based on specific fluid handling needs and operational contexts:

Rotary Pump: Designed to transport vapor-liquid-solid three-phase mixtures and highly viscous substances, making it suitable for diverse applications such as measuring, self-priming, and gas-containing scenarios. The main components include the pump casing and rotor, featuring gears, screws, and cams. Unlike centrifugal pumps, rotary pumps lack suction and discharge valves. Their rotary motion, free of impact and characterized by high speed, results in a compact and small-sized structure. Most rotary pumps are lubricated by the conveyed liquid, making them ideal for lubricating liquids devoid of solid particles.

Centrifugal Pump: Primarily adept at handling mildly corrosive fluids and incapable of conveying highly viscous media. Widely utilized in industries like electric power, metallurgy, and coal, particularly for transporting slurries containing solid particles, such as hydraulic ash removal in thermal power plants and ore slurry conveying in metallurgical beneficiation plants. Unlike rotary pumps, centrifugal pumps cannot convey media with high viscosity and are constrained in their application to fluids with limited corrosive properties.

Disparate Flow Control Mechanisms

Given below are the variations between a Rotary Pump and a centrifugal pump in terms of disparate flow control mechanisms:

Rotary Pump: Functions as a volumetric pump with precise flow control capabilities, offering flexibility for variable pump configurations. Possesses strong self-priming capabilities and maintains proportional flow rates relative to speed, unaffected by back pressure variations. Well-suited for metering applications requiring stable performance across varying viscosity and process conditions.

Centrifugal Pump: Features uncontrollable output flow rates, diminishing with increasing resistance. Challenges in flow rate control, especially at higher outlet pressures, with a tendency for decreased control accuracy. Suited for applications demanding average flow rates and smooth liquid transportation due to its compact structure.

Contrast in Rotational Speed

Here's the difference between a Rotary Pump and a Centrifugal Pump in terms of rotational speed:

Rotary Pump: Operates at slower speeds, minimizing vibration and ensuring gentle medium transportation, typically ranging from 120 to 600 rpm. This slower speed protects the composition of the conveyed medium and translates into higher efficiency compared to centrifugal pumps.

Centrifugal Pump: Characterized by high speeds, often reaching thousands of revolutions per minute, resulting in significant vibration during medium conveyance. High-speed operation poses a risk of medium composition disruption. The centrifugal pump's energy conversion process, from shaft power to potential energy, consumes substantial energy, leading to lower efficiency compared to rotary pumps.

Price Difference

The prices of Rotary Pumps and Centrifugal Pumps vary based on their features, installation, maintenance, and other traits.

Rotary Pump: Features a complex and precise structure, resulting in higher costs. However, diverse control options and lower equipment installation, maintenance, and overhaul expenses contribute to overall cost-effectiveness.

Centrifugal Pump: Offers a simpler structure and lower price point compared to rotary pumps, making it a cost-effective choice for applications with less demanding requirements.

Conclusion

Centrifugal pumps offer versatility and are widely utilized due to their adaptability to various applications. On the other hand, rotary pumps cater to more specialized needs. Understanding your specific application and the properties of your process fluid or materials is crucial in determining the most suitable pump type.
