A Deep Dive into Air Operated Diaphragm Pumps: Enhancing Plant Safety and Lowering Maintenance Overhead in the Middle East
29/07/2026
In high-risk industrial settings throughout Dubai, the UAE, and the larger Middle East, fluid transfer is much more than simply plumbing; it is the lifeblood of operational continuity for your facility. Choosing the correct pump controls the line between effortless productivity and expensive, stressful downtime, whether you are handling aggressive compounds, unstable hydrocarbons, viscous slurries, or delicate shear-sensitive liquids.
Introducing the Air Operated Diaphragm (AODD) Pump. Recognized for its amazing adaptability, sturdy construction, and hazardous area suitability, AODD technology has fast become the favored norm for plant engineers aiming to lower maintenance costs and raise safety.
How Does an AODD Pump Work and What Is It?
An AODD pump runs only on compressed air, in contrast to conventional centrifugal or positive displacement pumps depending on electric motors, mechanical seals, and sophisticated drive shafts.

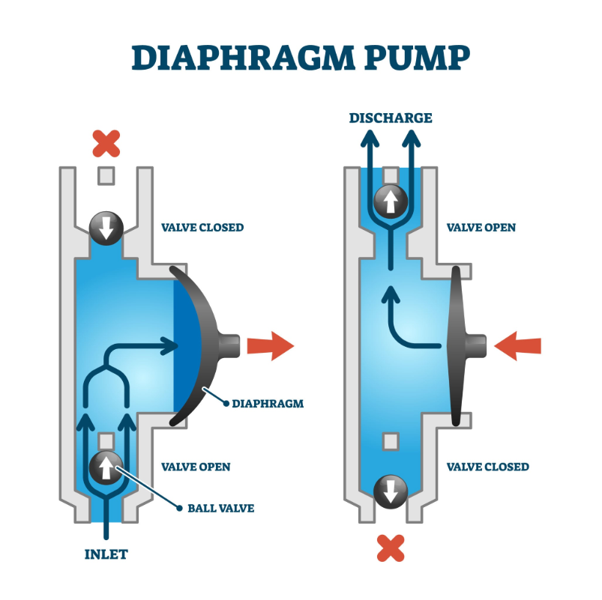

The mechanism can be explained easily as follows:
Air Distribution: Compressed air flows into an air chamber located behind one of two flexible diaphragms connected by a central shaft.
Suction and Discharge: When air pushes Diaphragm A out, it creates suction in the fluid chamber. At the same time, it pulls Diaphragm B in using the shaft, which causes fluid to be discharged from the other side.
Check Valve Seals: Inlet and outlet manifold ball or flap check valves open and close automatically to guarantee single-direction fluid flow free from backflow.
Since the fluid chamber is totally isolated from the air valve system by strong elastomer diaphragms, there are no rotating mechanical seals to leak or wear out.
The Middle East Advantage: Four Ways AODD Pumps Change Plant Efficiency
Running industrial plants in the Gulf area has its own set of difficulties, such as high ambient temperatures, dust, harsh chemical exposures, and strict regulatory expectations. Here is why switching to AODD pumps for your fluid management systems gives your company an instant competitive advantage:
1. Certified AODD Pumps for Safe Hazardous Area Operation
Electric motors increase electrical risk, high heat output, and sparks in dangerous oil & gas, petrochemical, or paint manufacturing areas. Since they are air-operated and do not require an electric motor, properly selected AODD pumps can reduce potential ignition sources in hazardous environments. Properly grounded AODD pumps can be used in explosive or combustible environments without requiring explosion-proof electrical motor enclosures.
2. Self-Priming Power and Run-Dry Capability
Few things cause a centrifugal pump to fail more quickly than operating it dry or having vapor lock. AODD pumps can tolerate dry running for extended periods, depending on the pump model and operating conditions. Furthermore, because of its remarkable suction lift, it can self-prime from dry starting circumstances, making it perfect for suction from mobile refuelers, sumps, and underground tanks.
3. Unrivalled Versatility for Any Fluid
AODD pumps manage everything, from low-viscosity solvents to high-viscosity sludge loaded with suspended particles, with minimum shear. You may build a unit specifically tailored to handle a wide range of fluids by selecting the appropriate pump body material (aluminum, stainless steel, polypropylene, or PVDF) and diaphragm material (Teflon, Hytrel, Nitrile, or EPDM), based on chemical compatibility and operating conditions.
4. Reduced Leakage Risk and Lower Maintenance Overhead
Mechanical seal failures are a significant contributor to pump maintenance requirements. Completely getting rid of spinning shafts and mechanical seals greatly lowers leak hazards, maintains workplace cleanliness, and lowers planned maintenance to straightforward, reasonably priced diaphragm inspections.
Peace of Mind on the Factory Floor
Ask any plant manager in Dubai what causes them the most stress each day, and they'll tell you: equipment failure that happens when they are making a lot of products. Enough to drive anyone crazy are regular equipment failures, leaks of hazardous chemicals, and emergency repair calls.
When your pumps just operate without problems, your staff may concentrate on expansion, productivity, and long-term innovation rather than on handling everyday operational disasters.
Key Features Comparison: AODD vs. Centrifugal vs. Gear Pumps
Feature
AODD Pumps
Centrifugal Pumps
Internal Gear Pumps
Power Source
Compressed Air
Electric Motor
Electric Motor
Mechanical Seals
None (No rotating mechanical seal)
Typically Required
Typically Required
Run-Dry Safe?
Yes (Dry run capable)
No (Not recommended)
No (Not recommended)
Hazardous Areas
Hazardous (Air)
Requires ATEX-rated configuration
Requires ATEX-rated configuration
Viscous Fluids
Excellent
Poor to Fair
Excellent
Maintenance Complexity
Low (Simple rebuilds)
High
Medium to High
